Pneumatic precision

Precision air chucks APC

Finely adjustable clamping force. High accuracy for demanding machining tasks.

Technical advice
Sizes:75–400 mm
Accuracy:up to 0.5 µm
Precision air chucks APC

Air precision chuck APC

Higher accuracy of the clamping system, grants higher quality and concentricity of the workpieces.This leads to a better productivity and lower costs. Therefore MicroCentric high precision air chucks are the ascendent clamping systems with accuracys of 1,3 µm until size 250 created for implication processing. All MicroCentric chucks are suitable for ID and OD clamping. Equally precission vices are available for milling. Their easy handling on set up and at working, the high accuracy and especially the precisely controlled clamping force are making APC chucks to a brilliant clamping system.

Precision air chucks APC

Selection of air precision chucks APC

Chuck type  Through bore Kind of clamping system High speed version Sizes mm
APC-S No Chuck No 75 - 400
APC-N Yes Vice No 75 - 250
APC-H No Chuck Yes 150
APC-SC No Chuck No 100 - 180

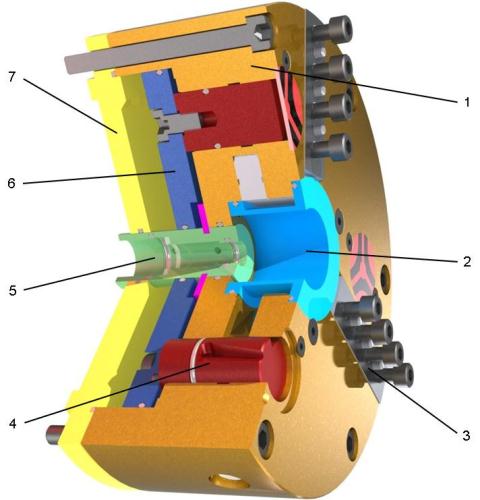

Design layout

The chuck (APC-S shown) is existing out of following, basically parts:

No. Designation
1 Chuck body
2 Sealing bush
3

Base jaw
4 Actuator
5 Air manifold
6 Piston
7 Backcover

Aligned to process requirements, the chucks or vices could get supplied with different options. The describtion of them are listed on a separate page.





Funktionszeichnung Backenfutter



Functionality

All MicroCentric air chucks have a built- in, double effective clamping cylinder. Inside this cylinder a piston is located, wich is getting axial moved. Done by specific, on the piston fixed actuators a radial movement of the base jaws is getting grant. The base jaws itselves are getting guided by a high precise lapped T-Nut, to reach a maximum result of lifetime and repeat accuracy. The general supply of air for actuation is getting granted by an air tube, on stationary vices with lateral bores. The chucks can get actuated by all kind of multi-port-valves. The air has to get treated by an air filter regulator lubricator unit. The workpieces are getting clamped done by top jaws, which get precise adapted after current process requirements.

Application field

MicroCentric APC chucks are high precise clamping systems for many different process tasks:

  • Rough and finish turning
  • Hard turning
  • Cylindrical grinding
  • Milling, drilling and thread cutting
  • Welding
  • Inductive hardening
  • Gearwheel machining (thrusting and
    grinding)
  • Eroding
  • Measuring
  • Handling
